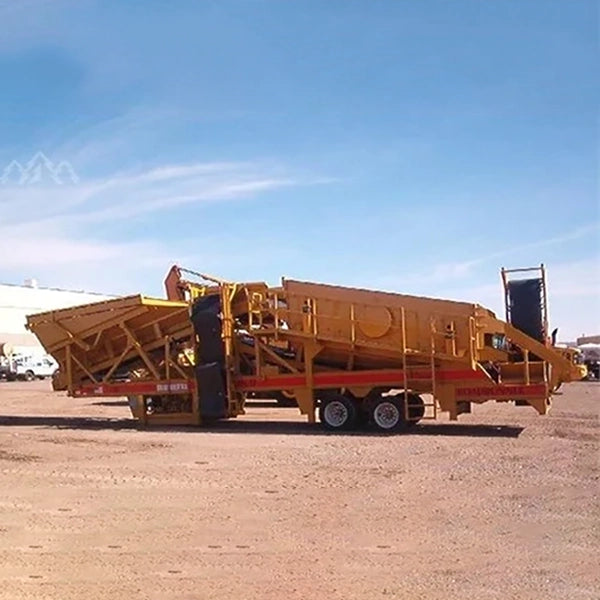

2019 CEC 5X12 Conveyor / Feeder / Stacker Aggregate Equipment

2019 CEC 5X12 Conveyor / Feeder / Stacker Aggregate Equipment

Loc: Belgrade, MT

Mileage:

Regular price $288,710.00 USD
Regular price Sale price $288,710.00 USD
Sale Sold out
Shipping calculated at checkout.

Email seller at: richieb@tste.com

Call at: 406-245-3188

Price: $288,710.00

Description:
Year: 2019
Manufacturer: CEC
Model: 5X12
Hours: 433
Serial Number: 909833
Condition: Used
Stock Number: 909833

Overview:
Hopper: 14.5 CYD Hopper With 48” Impact Roller Belt Feeder, HD Impact 20 Degree Picking Rolls, Rubber Lagged Head Pulley, Winged Tail Pulley, Rubber Adjustable Skirt Board, HD Variable Speed Hydraulic Drive, Planetary Gear Box

Grizzly: Radio Remote Control for Feeder and Grizzly, Hydraulic Dump w/ Special Side Load Hopper; 6” Opening, Grizzly Bar Tubing Has ½” Thick Wall Construction

Belt Feeder: 23’ Long, 48” Wide, Discharges Onto 5X12 Screen Deck, Directional Charging Hopper Walls Guide Material From The Belt On To The Screen, Electric Actuator Controls Allows Operator To Control The Feeder Speed From Either Of The Two Plant Mounted Control Stations, Kill Switches Are Located At Both Control Panels And Above Catwalk

Screen: CEC Heavy-Duty 5X12 Step Deck Mounted On Sub Base Frame On Vertical Rubber Springs, Driven By A Hydraulic Motor With An Outboard Drive And Sheave On An Adjustable Base Plate, Top Deck Is Side Tension And Has A Step Deck With The Top Section Being 7’ And The Lower Portion Being 5’, The Step Is 5”, Lower Deck Is All One Level And Split Into Two Separate Side Tension Pieces, Screen Runs At 850 RPM And has a 3/8” To 5/8” Stroke As Shipped From The Factory


Power And Hydraulics: 91 HP Turbocharged Cat Water Cooled Diesel Engine With High Altitude Option And 65 Gallon Fuel Tank Built Into The Frame, Screen Off Board Conveyors, Feeders Are Hydraulically Driven, Feeder Motor Is Variable Speed, High Capacity Hyd. Tank, Four Sided For Good Cooling With Overhead Cover.

Frame Construction: Wide Flange Chassis Beam, Cross Members, HD Construction w/ Multi-Pass Welding

Under Screen Conveyor And Discharge Conveyor: Fines Gathered Under Screen Deck Are Carried Up On A 42” Belt And Are Discharged Onto A 30” Side Folding Conveyor, Discharge Height Is 14’ In Working Position

Rear Side Discharge Conveyor: Second Deck Side Discharge Conveyor, 14’ Discharge Height Working Position, Both Side Conveyors Are Hyd. Dual Fold For Transport, Conveyor Length is 27’ With 18’ 4” Beyond The Frame, Flow Control

Running Gear: Oil Filled Hubs, Air Brakes, Dual Axle, Spring Suspension, Fenders, Lights, Fifth Wheel Pull, Four Hydraulic Jacking Legs, CEC Style Run on Legs

Screen-It Ball Tray: Divides Bottom Deck Structure into 12” Squares, 1” Bottom Screen Cloth, 272 Ball Tray Balls, Assists To Prevent Blinding.

Transport Dimensions: 13’ 6” High, 11’ 11” Wide, 44’ 9” Long, Total Clean Weight 46,680 Lbs., Pin Weight 23,180 Lbs., Clean Trailer Weight 25,500 Lbs.

Screen Cloth: (2) 2” SQ-Top Deck, (2) 1” SQ-Bottom Deck
