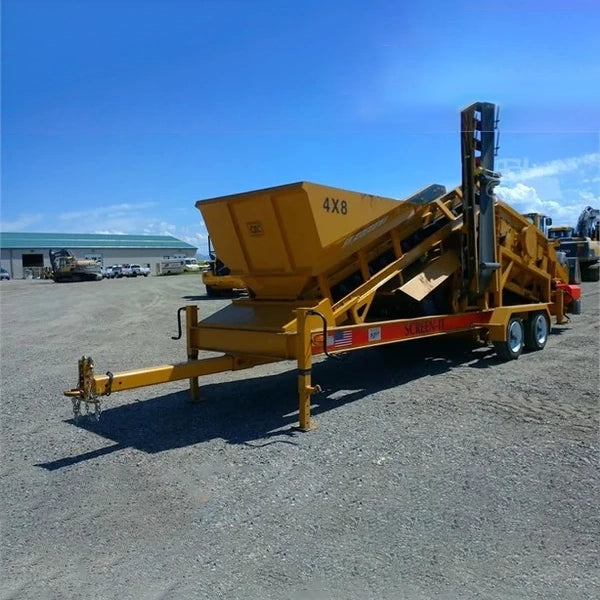

2019 CEC 4X8 Screen Aggregate Equipment

2019 CEC 4X8 Screen Aggregate Equipment

Loc: Belgrade, MT

Hours:

Email seller at: richieb@tste.com

Call at: 406-245-3188

Price: $148,839.00

Description:
Year: 2019
Manufacturer: CEC
Model: 4X8
Hours: 231
Serial Number: 19-09795A
Condition: Used
Stock Number: 19-09795A

OVERVIEW
• New 3 cubic yard feed hopper with 36" roller belt feed
• Heavy-duty picking style idlers, placed close for impact
• 2 ply feed belt
• Rubber lagged head pulley
• Adjustable winged tail pulley
• Rubber skirt boards
• Variable speed
• Hydraulic drive
• Discharges onto 4’ x 8’ screen deck
• Directional charging hopper walls guide material from belt onto the screen
• Manual control allows the operator to control feeder speed from plant mounted control station

SCREEN
• CEC 4’ X 8’ deck is mounted on a sub-base frame on horizontal isolators
• Direct drive hydraulic motor with no belts to adjust
• Top and second deck are both side tension
• Decks are all one level consisting of two pieces of screen mesh
• Please consult the factory for screen or punch plate selection
• Screen runs at 1050 RPM and has a stroke as shipped from the factory

HYDRAULICS
• Screen - conveyors - feeders are hydraulically driven by engine-mounted hydraulic pumps
• Feeder motor is a variable speed
• Hydraulic tank is high capacity; for improved cooling
• Screen plant is operated by a 48 HP diesel engine
• Diesel engine has a built-in 25-gallon fuel tank in the frame

FRAME CONSTRUCTION
• Wide flange beam chassis
• cross members
• Heavy-duty construction
• Multi-pass welding

UNDER SCREEN CONVEYOR
• The fines, which are gathered underneath the screen deck, are carried up on a 30" conveyor belt and are discharged onto a 18” side conveyor

TWO-SIDE DISCHARGE CONVEYORS
• A second deck side discharge conveyor delivers material to one side for product piling
• 18” x 12’
• Single fold for transport
• Single ply belt
• Conveyor has a 6' discharge height when blocked in working position

RUNNING GEAR
• Grease hubs
• Electric brakes
• Dual axle
• Spring Suspension
• Mudflaps
• Lights
• Retractable pintle hitch
• Travels down the road at the highway speed like an over-the-road trailer
